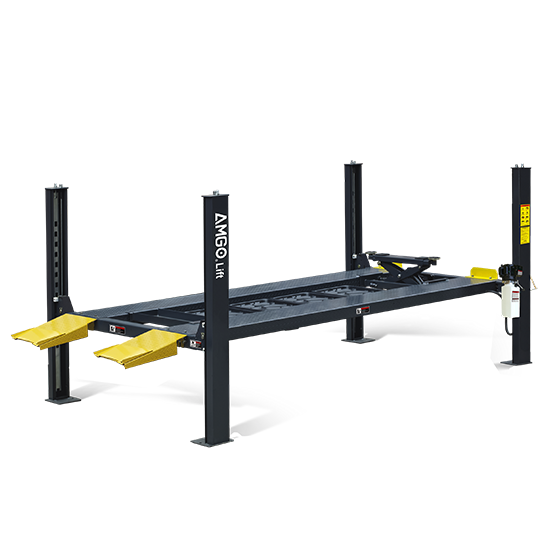

The AMGO 408-P is the perfect lift for residential and commercial shops alike. It can handle vehicles up to 8,000lbs and requires no anchors to your concrete. This lift is easy to install and operate, and is built to the highest quality standard. The AMGO 408-P is one of the best 4-post lifts on the market. Add on additional caster kits, and simply roll the lift to a new location.
Options
AMGO Plastic Drip Tray Add to Order
AMGO Jack Tray Add to Order
AMGO J5H sliding jack with hand pump Add to Order
AMGO Caster Kit Add to Order
Description
Features
- 8,000lbs lifting capacity
- AMGO exclusive hidden safety locks and manual single-point lock release
- Multi safety locks in each column
- Adjustable lock ladder
- Automatic safety locks combined with redundant anti-fall devices
- Double-S shaped columns for increased strength
- Non-slip platform
- Flexible Design: power side column can be installed at any corner
- AMGO 5-3-2 Warranty
| Model | 408-P |
| Lifting Capacity | 8,000lbs |
| Lifting Time | 83s(110V) 31s(220V) |
| A: Overall Length (Inc Ramps) | 207″ (5257mm) |
| B: Overall Length (No Inc ramps) | 173 1/4″ (4400mm) |
| C: Overall Width | 109 5/8″ (2784mm) |
| D: Width Between Posts | 96″ (2438mm) |
| E: Max. Lifting Height | 73 3/4″ (1872mm) |
| F: Overall Height | 82 7/8″ (2105mm) |
| G: Minmun Height | 6 1/8″(155mm) |
| H: Max. Underneath Height | 69″ (1752mm) |
| I: Drive-Thru Clearance | 81 5/8″ (2074mm) |
| J: Width Between Runways | 37″ (940mm) |
| K: Outside Edge of Runways | 74 3/8″ (1890mm) |
| Gross Weight | 1,649lbs(747kg) |
| Motor | 1.0HP 110V/60Hz; 2.0HP 220V/60Hz |
Detailed Images
- Hidden locking device and manual single-point safety lock release.
- Commercial double safety locks provide additional safety.
- Optional Aluminum alloy drive in ramps. Weight for the set is 40 lbs (18 kg). Kit No: 40803
- 90° installation plate for installing the power unit at the side of a column. Optional Kit No: 40802
- Optional Caster Kits help easily maneuver the parking lift. One set 4pcs. Kit No: 40801
- Optional J5H sliding jack with hand pump. 1.5″ and 2.5″ extension adapters included. Capacity 5,000lbs.

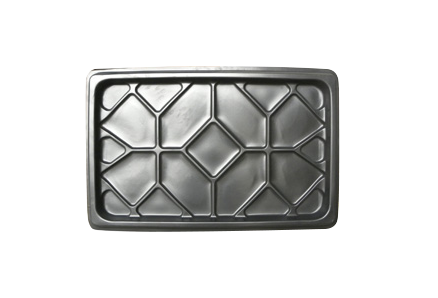

- Optional Drip Trays one set 4pcs. Kit No: 40806. Specifications 36 5/8″ ×23 5/8″

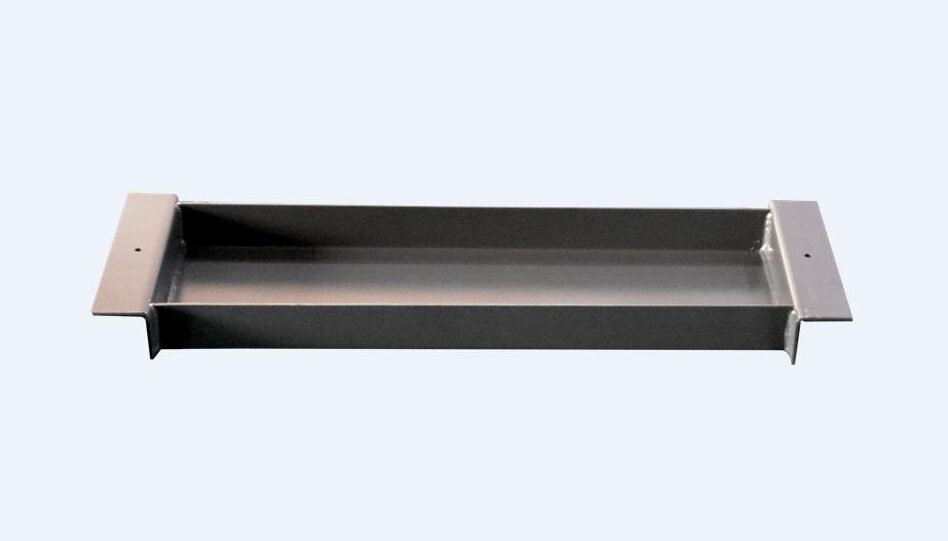

- Optional Jack Tray Kit No.:40808
