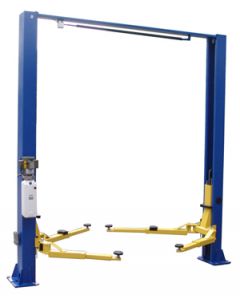

Two Post Clear Floor
9,000 lbs capacity
Asymmetric Arms
Rubber Door Guards
Chain Drive Cylinders
Dual Point Lock Release
Auto Arm Restraint System
Single Piece Column
Internal Hose routing

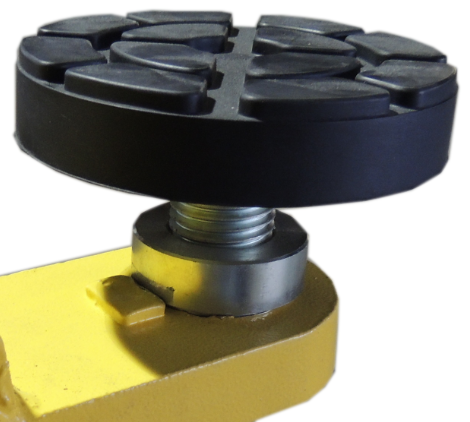

Low profile Spin Up Lift Pads

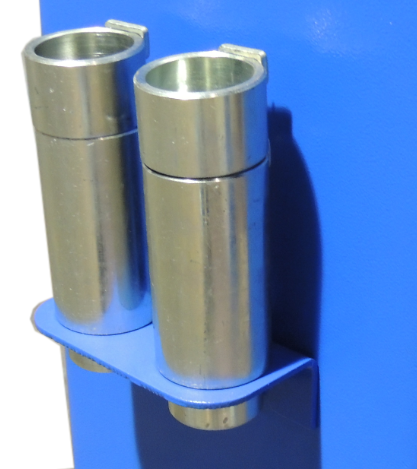

Stackable Adapters Included
Specifications
| Lift Model | BETP9KACX |
| Capacity | 9,000 lbs. |
| Height Overall | 142-7/8″ |
| Width Overall w/ Power Unit | 138″ |
| Max Lift Height | 72″ |
| Width Between Columns | 113-5/8″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 96″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Asymmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 29″-41″ |
| Long Arm Reach – min/max | 37″-57″ |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,250 lbs. |
| Ship Weight | 1,370 lbs |
| Power | 220V – 20 AMP – 1 PH |
